High-performance oscilloscope measuring waveform signals for electronic testing.

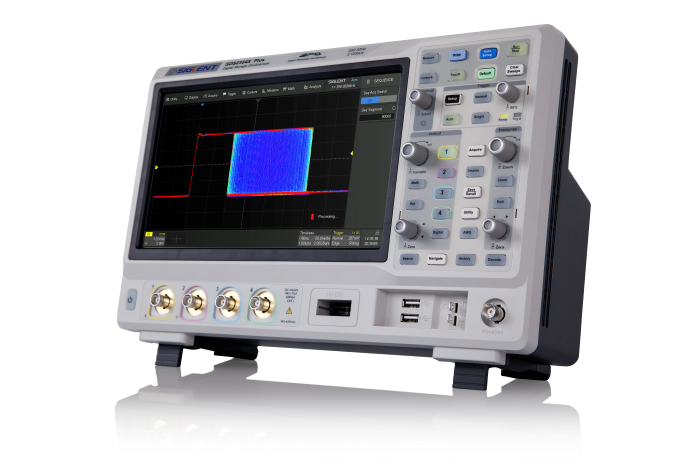

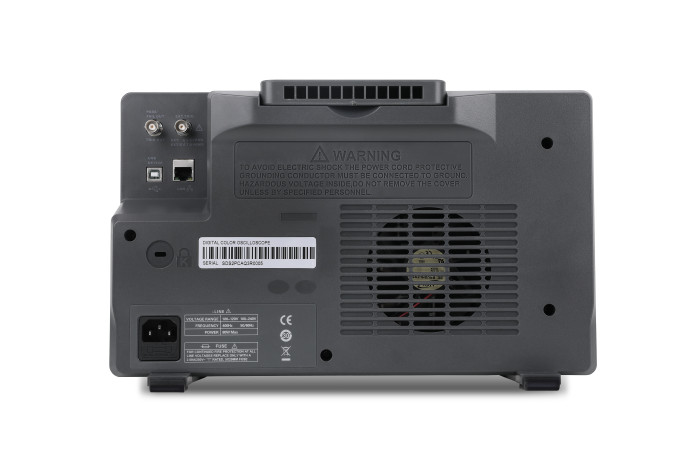

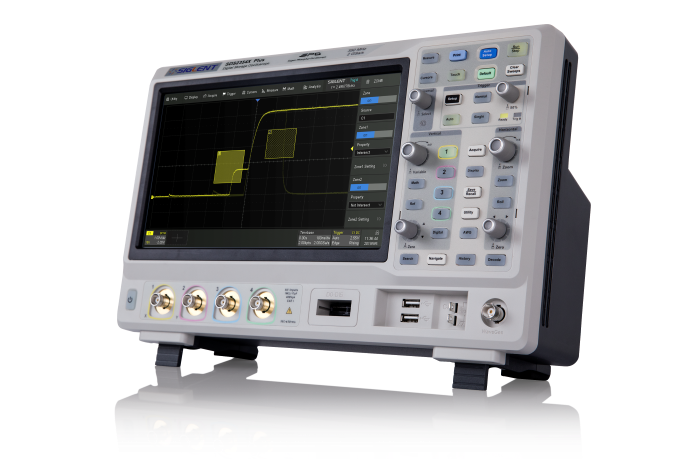

SDS2000X Plus

Bandwidth Selection:

100 MHz, 200 MHz, 350 MHz, 500 MHz

Resolution:

10 to 12 bits

Sampling Rate:

2 GS/s

Max Memory:

200 Mpts

Channels:

2, 4

The Siglent SDS2000XP series sets a new standard in bench oscilloscopes, delivering high performance and intuitive ease-of-use. With up to 200 MHz to 500 MHz bandwidth, 4 analog channels, and a 1 GSa/s real-time sampling rate, these scopes empower engineers to capture fast, transient signals with clarity. Enhanced by a 12-bit ADC, long memory depth and a responsive 10.1-inch touchscreen, the SDS2000XP enables advanced measurement capabilities—serial decode, segmented memory & advanced math—without sacrificing affordability. Ideal for R&D labs, educational institutions and quality-control environments, this series brings professional-level features within reach for everyday use.

Bandwidth options: 100 MHz, 200 MHz, 350 MHz, 500 MHz
Real-time sampling rate: Up to 2 GS/s
Large display: 10.1″ capacitive touchscreen with intuitive gesture control
Memory depth: Up to 200 Mpts per channel
High waveform update rate: Up to 120,000 wfm/s (normal mode), 500,000 wfm/s (sequence mode)
Segmentation acquisition mode for capturing multiple triggered events efficiently
16 digital channels (MSO option) for mixed-signal debugging

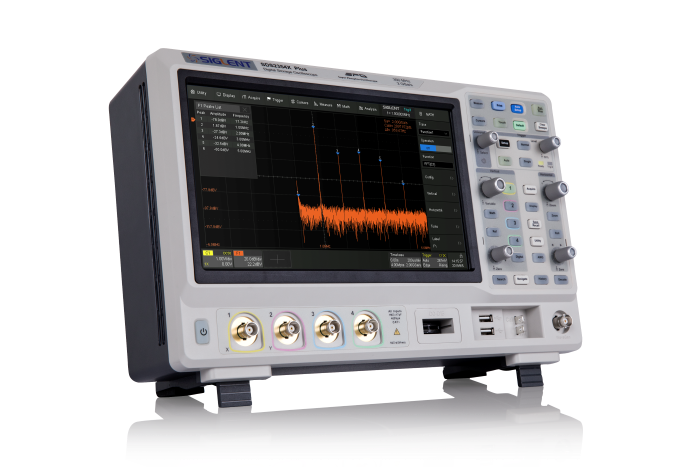

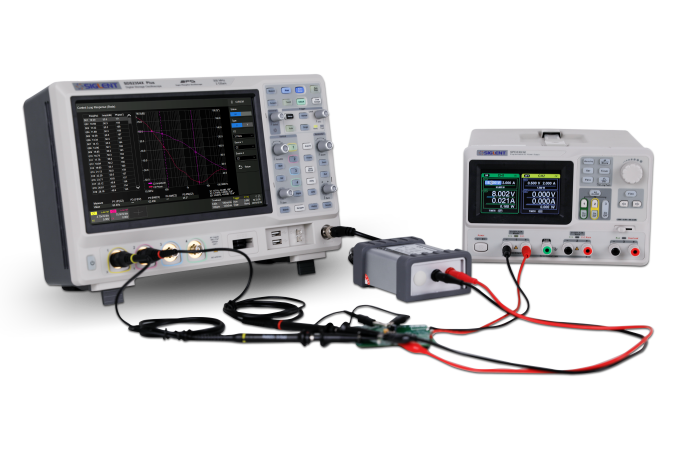

Advanced math and analysis functions including FFT, trend, histogram, and Bode plot
Serial bus decoding and triggering (I²C, SPI, UART, CAN, LIN, and more)

Bandwidth options: 100 MHz, 200 MHz, 350 MHz, 500 MHz
Real-time sampling rate: Up to 2 GS/s
Large display: 10.1″ capacitive touchscreen with intuitive gesture control
Memory depth: Up to 200 Mpts per channel
High waveform update rate: Up to 120,000 wfm/s (normal mode), 500,000 wfm/s (sequence mode)
Segmentation acquisition mode for capturing multiple triggered events efficiently
16 digital channels (MSO option) for mixed-signal debugging
Advanced math and analysis functions including FFT, trend, histogram, and Bode plot
Serial bus decoding and triggering (I²C, SPI, UART, CAN, LIN, and more)
